Pipes/Fields |

|
|
Pipes/Fields |
|
Volume related information (MMBTU's, MCF's, oil barrels, liquid gallons, etc.) are all stored within EnergySteward.com for meter/well entities (this is a generic term to reference infrastructure type entities including meters, wells, leases, tanks, etc.). Each one of these meter/well entities belong to a specific pipe/field. The pipe/field entity can represent a pipeline, gathering system, oil field, etc. You must setup the pipe/field prior to setting up your meters/wells which might belong to the pipe/field.

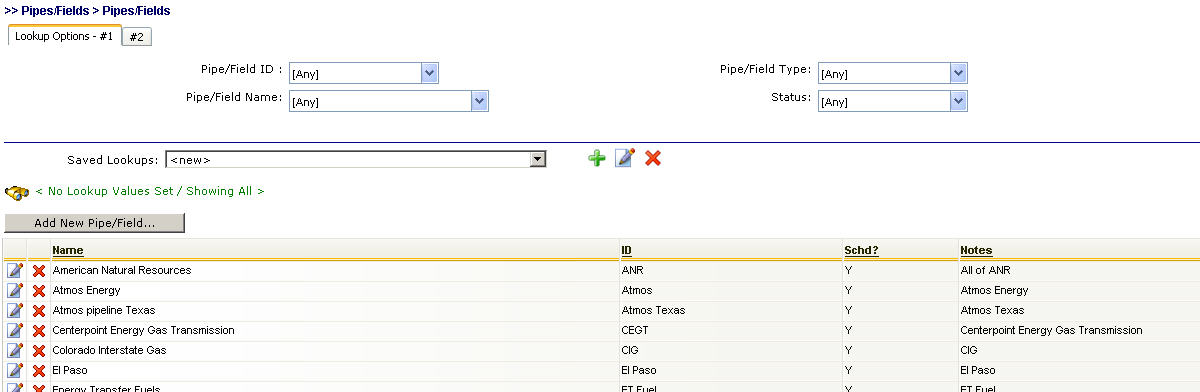

The screen shot below shows where you add, update and browse pipe/field information.
Add New Pipe/Field (button) - Click this button to add a new pipe/field.
View/Edit Grid Button (pencil) - Click this next to the applicable pipe/field in order to change any of the information relevant to this pipe/field.
Delete Grid Button (red x) - Click this next to the applicable pipe/field that you want to permanently delete. When you delete a pipe/field, then all information relevant to that pipe/field, as stored within EnergySteward.com, will be permanently deleted (meters/wells, contract and deal references to the meters/wells, etc.). You might consider inactivating the pipe/field versus deleting. Important note: You will be presented with a confirmation ("Are you sure...?") dialog box prior to deletion.

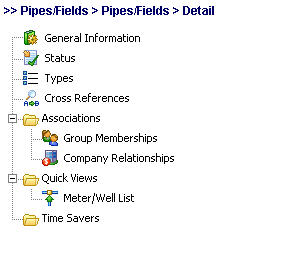

The following lists out the various areas of information relative to a specific pipe/field within the system. This is the tree navigation area which you will see when you add or update a pipe/field. With the initial screen being set to the 'General Information' screen.
